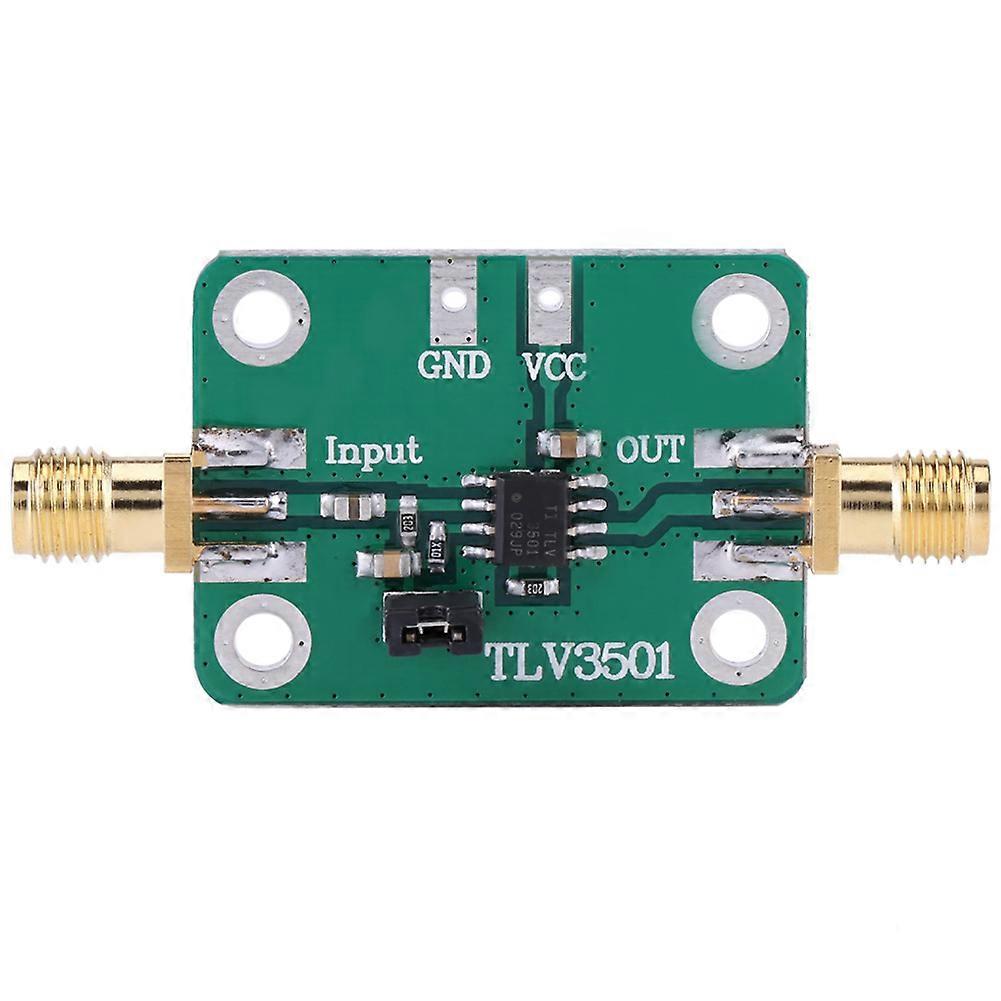

TLV3501 High Speed Comparator Frequency Meter Module with Front Shaping Circuit for Precise Signal Processing and Measurement

64,00 DKK
+ 55,99 DKK Levering

TLV3501 High Speed Comparator Frequency Meter Module with Front Shaping Circuit for Precise Signal Processing and Measurement

  • Brand: Unbranded
Sоlgt af:

TLV3501 High Speed Comparator Frequency Meter Module with Front Shaping Circuit for Precise Signal Processing and Measurement

  • Brand: Unbranded
RRP: 99,00 DKK
Pris: 64,00 DKK
Du sparer: 35,00 DKK (35%)
Sоlgt af:
64,00 DKK
+ 55,99 DKK Levering

På lager

Vi accepterer følgende betalingsmetoder

Beskrivelse

Enhance your electronic measurement and signal processing projects with this high-speed TLV3501 Single-Channel Push-Pull Output Comparator Module. Designed for superior performance, this module features an ultra-fast delay time of 4.5ns and operates within a wide supply voltage range of +2.7V to +5.5V, making it ideal for low voltage applications. Its rail-to-rail output can directly drive CMOS or TTL logic circuits, ensuring seamless integration and reliable operation in various signal conditioning tasks. Key Features: · High-Speed Performance: With a minimal delay of 4.5ns, this comparator module enables precise timing and rapid signal processing essential for high-frequency applications. · Wide Supply Voltage Range: Operates efficiently between +2.7V and +5.5V, suitable for modern low voltage electronic designs. · Rail-to-Rail Output: Provides full output voltage swing compatible with CMOS and TTL logic inputs, eliminating the need for additional level shifting. · Versatile Signal Conditioning: Converts sine waves, square waves, and triangular waves into clean square wave outputs without requiring threshold adjustments, simplifying setup and use. · Wide Frequency Response: Supports input frequencies from 1Hz up to 120MHz, accommodating a broad range of signal types for frequency and phase difference measurements. · Compact Design with SMA Female Interface: Includes an SMA female connector with external screw holes for secure and stable connections; compact dimensions of 5 x 2.5cm (1.96 x 0.98 inches) and lightweight at 8g enable easy integration into existing systems. · Extensible and Customizable: Offers excellent extensibility allowing minor modifications for enhanced performance in customized applications. Specifications: · Output Level: Rail-to-rail output driving TTL/CMOS logic directly · Input Frequency Range: 1Hz to 120MHz · Input Impedance: 20K ohms · Interface: SMA female connector with external screw hole · Size: 5 x 2.5 cm (1.96 x 0.98 inches) · Weight: 8g · Supply Voltage: +2.7V to +5.5V · Delay Time: 4.5ns Applications: · Signal waveform shaping, converting analog waveforms (sine, square, triangular) into square waves · Zero-crossing comparator functionality · Frequency and phase difference measurement modules for digital frequency meters and timing circuits · Front-end conditioning for electronic design contests and professional electronic instrumentation Package Includes: · 1 x Frequency Meter Front Shaping Module (TLV3501 Comparator Module) This TLV3501 high-speed comparator module is an essential component for designers and engineers seeking accurate, fast, and reliable waveform conversion and signal conditioning. Its combination of wide voltage compatibility, fast response, and easy integration makes it a valuable addition to your electronic toolkit.
  • Fruugo ID: 425064984-893335109
  • EAN: 8137357800327
