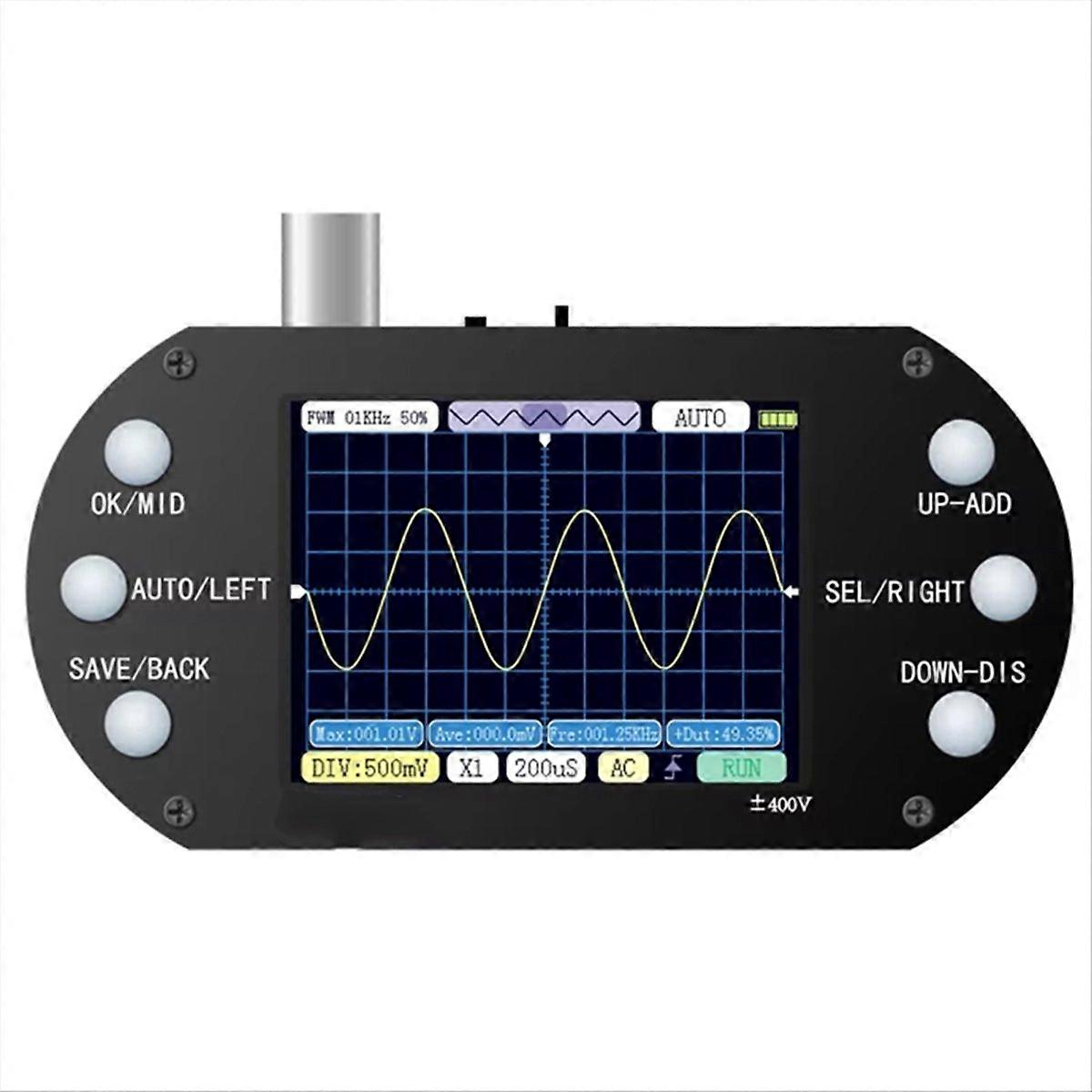

Equipped with a 2.4-inch TFT display, 320*240 resolution, you can see the measurement data displayed on the screen. 2.5MHz sample rate, 200KHz actual bandwidth, 500KHz analogue bandwidth (si aves). With complete trigger function (single, normal, automatic), no matter for periodic analogue signal or non-periodic digital signal can be used freely. The measurement of the voltage signal is up to ±40V. The efficient one-click AUTO function displays the measured waveform without tedious adjustment. Waveform measurements display functions that can be used to detect si aves, square waves, half-waves, sink pulse waves, etc. With one-button waveform saving feature. Only the part of the waveform that is currently being displayed can be saved. Widely applicable, it can be used in a wide ranges of applications such as automotive maintenance, appliance maintenance, teaching, and research. Note: Some of the measured signals cannot be correctly captured with AUTO and need to be adjusted manually. Firmware upgrade: To upgrade the display part, OK to turn on the machine, to upgrade the bottom part, SAVE to turn on the machine. Name:Handheld Oscilloscope Type:standard configuration Rate of adoption: 2.5MHz Analogue bandwidth: 500KHz Actual bandwidth: 200KH Measuring ranges:X1/±40V Depth of storage:1Kb Parameter type:12 PWM output: Frequency:1K-80KHz Duty:0- Voltage:3.3V Function:17 Waveforms Output: Frequency: 1-1KHz Voltage ranges: 0-3.3V (fix) Display:2.4Inch TFT 320*240 Resolution ratio Charging voltage:5V Battery capacity:1x3.7V, 600mAh (included) Upper computer:Not supported for now Firmware upgrade:Support Color:Black Material:Plastic+Metal Package Contents: 1 * Oscilloscope 1 * Alligator clip cable 1 * English instruction m
