Features
1、[Multifunctional Design]: This product combines inductance measurement, frequency measurement, polarized capacitance measurement, and non polarized capacitance measurement to meet a variety of measurement needs.

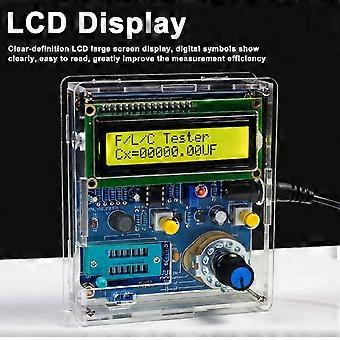

2、[LCD Display]: Clear definition LCD large screen display, digital symbols show clearly, easy to read, greatly improve the measurement efficiency.
3、[SW3 Self locking Switch Function]: According to the different types of capacitance measurement, improve the measurement accuracy. When measuring nonpolarized capacitance, Sw3 switch is used to adjust zeroing; when measuring polarized capacitance, Sw3 is used to choose the measurement ranges.
4、[Soldering Set]: Soldering practice of loose parts can not only exercise the hands on ability, but also teach to understand the use of microcontroller knowledge and the principle of frequency, capacitance, and inductance measurement.
5、[Easy to Operate]: Rotary gear switch, choose different functions, measurement is more convenient, improve the accuracy of measurement. Simple to operate, suitable for electronic enthusiasts and beginners. 6、[Housing]: The beautiful and wear resistant design of the transparent acrylic housing prevents the hand from contacting with the board and protects the safety of the user.
Specification
This kit is based on 51 microcontroller design capacitance measurement, inductance measurement, and frequency measurement in one of the multifunction measuring instruments, which can measure a variety of non polar capacitance, polarized electrolytic capacitance, inductance, and frequency. Soldering practice production of loose parts, learning to understand the use of microcontroller knowledge and frequency, capacitance, and inductance measurement principles. Suitable for electronic enthusiasts and beginners.
Specifications:
Name: Capacitance Inductance Meter Set
Material: printed circuit board
Power supplying voltage: 5V USB
Non-polarized capacitance measurement ranges: 1pF-2200pF
Polarized capacitance measurement ranges: 1uF-12000uF
Inductance measurement ranges: 1uH-1H
Frequency measurement ranges: 20Hz-400KHz
Item size:
Printed circuit board size: 91 * 80mm / 3.59 * 3.15in
With housing size: 106 * 91 * 28mm / 4.17 * 3.59 * 1.10in
Package size: 100 * 130 * 30mm / 3.94 * 5.12 * 1.18in
Package weight: 198g / 6.98ounce
Package List

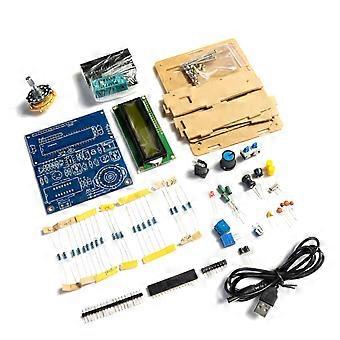

1 * Electronics Kit
1 * Housing
-
Fruugo ID:
342829102-751331559
-
EAN:
9367397073347
Produktsikkerhedsinformation
Se venligst produktsikkerhedsoplysningerne, der er specifikke for dette produkt, beskrevet nedenfor
Følgende oplysninger leveres af den uafhængige tredjepartsforhandler, der sælger dette produkt.
Produktsikkerhedsmærker
Sikkerhedsadvarsler:
Please do not allow your child to handle this product alone to avoid swallowing or other injuries; adult supervision is recommended.
