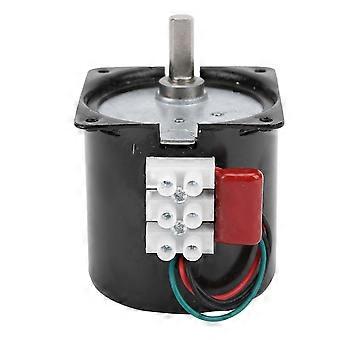

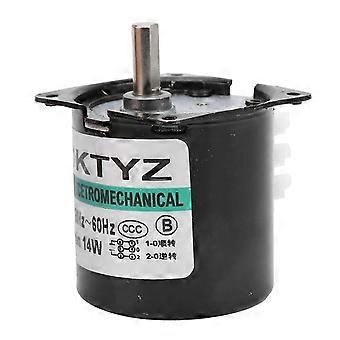

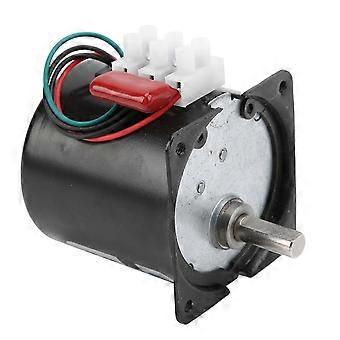

Item Type: Gear Motor Model: XD-60KTYZ Material: Copper Output Shaft Size: Approx. 7 x 19mm / 0.3 x 0.7in Protection Level: IP20 Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20M Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, apply 50Hz or 60Hz between the coil shells for one second at a voltage of 1800V without abnormality. Temperature Rise: When the gearbox or equivalent heat sink is installed, and the rated operation is performed under normal temperature and humidity, it is normal to measure the temperature rise of the coil by the resistance method to 75-80. Insulation Class: E class (130) Operating Environment Temperature: Motor: -10~+40 (no icing) Use Environment Humidity: 85% or less (no condensation) Whether Support CW and CCW: Yes Whether Support Speed Regulation: No ModelVoltage (V)Speed (rpm/min)Normal Torsion (kgfcm) Long Time WorkLarge Torsion (kgfcm) Intermittent WorkPower (W) XD60KTYZAC220V20121714 3051014 502.5514 801.7314 AC110V20121714 3051014 502.5514 801.7314
