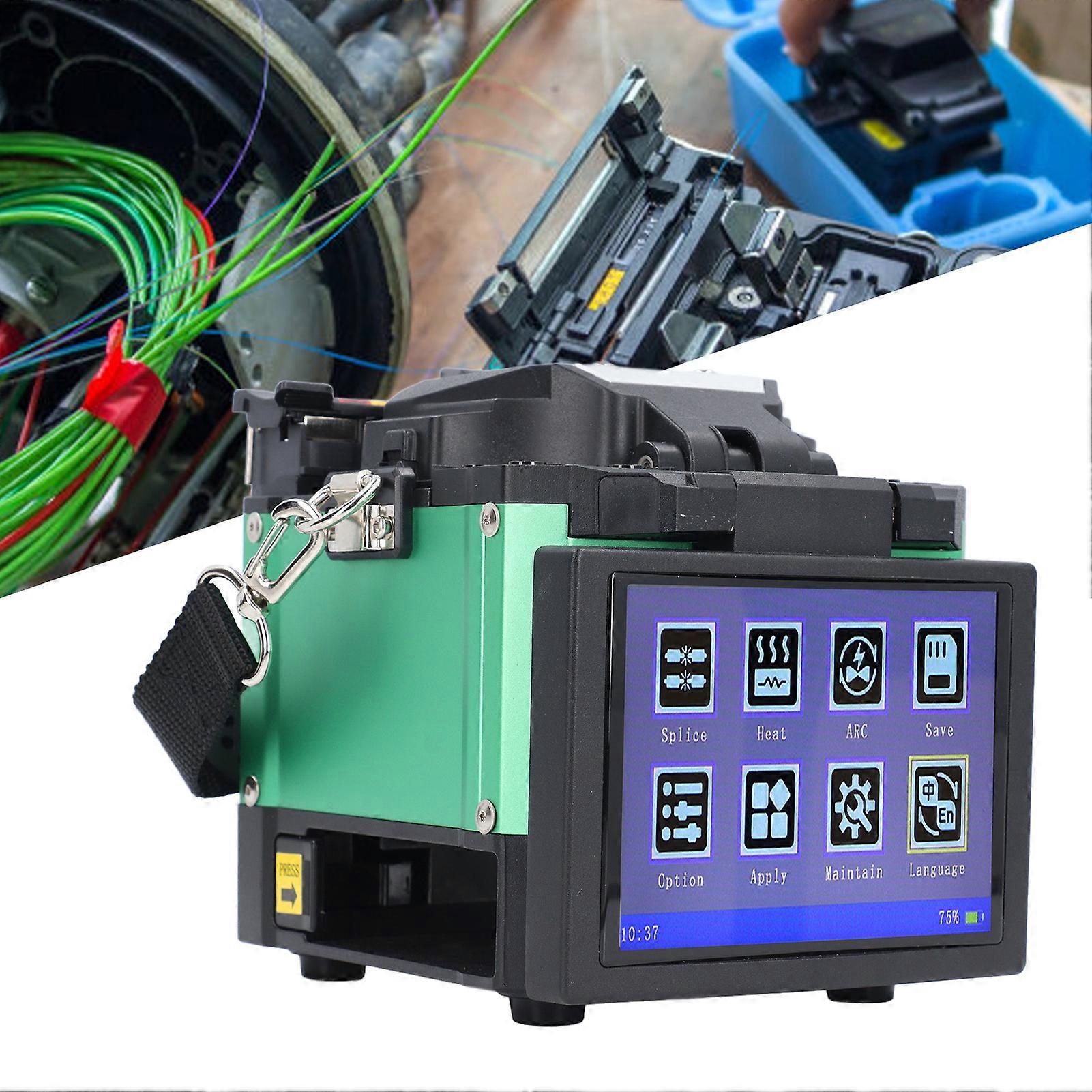

Fiber Optic Fusion Splicer 400X Zoom 5 Inch LCD Screen Automatic Fiber Splicing Machine 50 60Hz Item Type: Fiber Optic Fusion Splicer Material: Aluminum Alloy, ABS Applicable Optical Fiber: SM (G.652 G.657), MM (G.651), DS (G.653), NZDS (G.655), and custom fiber types Connection Loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS, NZDS) Return Loss: Better than 60dB Typical Connection Time: 9 seconds Typical Heating Time: 26 seconds (heating time can be set, heating temperature can be adjusted) Fiber Optic Alignment: Fine alignment, core alignment, cladding alignment Fiber Diameter: Cladding diameter 80-150μm, coating diameter 100-1000μm Cutting Length: Coating layer below 250μm: 8-16mm; Coating layer 250-100μm: 16mm Tension Test: Standard 2N Fiber Optic Fixture: Multifunctional fixture suitable for bare fiber, tail fiber, jumper, leather wire; Replacing fixture can be used for SC and other connectors for various FTTx fiber optic cables Magnification Factor: 400X (X or Y axes) Heat Shrink Tubing: 60mm, 40mm, and a series of micro shrink tubing Display: 5.0 inch TFT color LCD display screen, content can be flipped, convenient for two way operation External Interface: USB interface, convenient for data downloading and software update Fusion Mode: 17 sets usage mode Heating Mode: 9 sets usage mode Connection Loss Storage: Store 5000 latest connection results in built in memory Battery Life: Can be continuously fused and heated for no less than 200 times Power Supply: 1 x 6700mAh rechargeable lithium battery, charging time ≤3.5H (shipped with matching battery) Power Saving Function: Can save 15% of lithium battery power in typical environments Working Environment: Temperature: -10~+50℃; Humidity: <95% RH (without condensation); Working altitude: 0~5000m; Maximum wind speed: 15m/s Lighting Function: Convenient for placing optical fibers at night Color: Green
