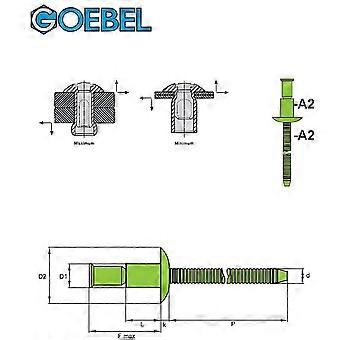

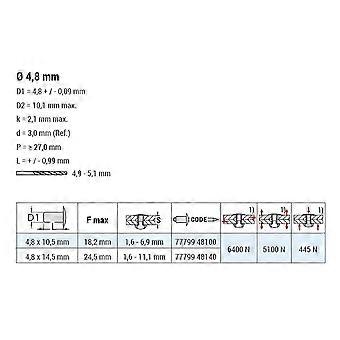

Head shape: Flat round head Material mandrel: Stainless steel A2 [ 1.4301 ] Material body: Stainless steel A2 [ 1.4301 ] Head Diameter (D2): 10,1 mm max. Diameter (mm): 4.8 Length (mm): 14.5 Mandrel Length (P): ≥ 27,0 mm Mandrel Diameter (d): 3 Manufacturer: Goebel GmbH Article no.: 7779948140 Category: Structural Blind Rivets F-Max (mm): 24.5 Head Height (k): 2,1 mm max. Brand name: M-LOCK Grip Range min.: 1.6 Grip Range max.: 11.1 Shear load: 6400 N Tensile breaking load: 5100 N Suitable for: indoors and outdoors Nominal Diameter (D1): 4,8 + / - 0,09 mm Length (L) Tolerance: + / - 0,99 mm Drill (diameter pre-drilling): 4,9 - 5,1 mm Pieces: 250Advantages at a Glance • suitable for applications with heavy loads • extensive range and high clamping force, components can be pulled together even if space between them is large • very high shear and tensile values • excellent hole bearing performance (splash-proof and dust-tight) • high vibration resistance • mandrel always breaks flush to setting head • remaining mandrel is retained within the rivet body (without clapping sound) • can fi x very different material combinations • fast, simple and secure handling • permanent connection • no heat sensitive deformation of connected elements • no extensive fi nishing work is required • all-purposer Applications • Automotive industry • Vehicle manufacturing and car body construction • Building industry • Machine and tool building industry • General industry
