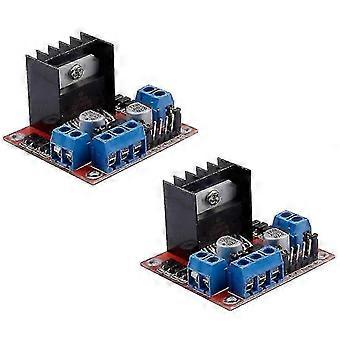

Dual-channel H-bridge driver working mode creates higher working efficiency,L298N as main chip, Can drive one 2-phase , one 4-phase or two DC motors.To avoid damage the voltage stabilizing chip, use an external 5V supply when using more than 12V driving voltage.Use -capacity filter capacitors and diode with freewheeling protection function, increasing reliability.High working power to 46v, current can reach 3A MAX and continue current is 2A, power to 25w. capacity filter capacitance,afterflow protection diode, more stable and .Specification:Chip: L298N voltage: 5V current 0mA-36mAMaximum power: 25WDrive voltage: 5V-35VDrive current: 2A(For each DC motor)Operating mode: Dual H-bridge driver (can drive 2 DC motors)Reason 1: Use L298N for Main ChipL298N is a kind of high voltage, high current motor driver chip. Features as high working voltage (maximum voltage up to 46V), output current (instantaneous current up to 3A), continuous working current 2A and 25W of rated power. Having 15 pins as package.Two built-in H Birdge high voltage and current full bridge drivers can be used to drive the DC motor and , relay coil and so on.The chip can connects to external detecting resistor to give the variations to the control circuit.Using L298N Chip to drive the motor, the chip can drive a stepping motor or four phase stepping motor, and two DC motors as . Using standard level signal control, it has two enable control ends. It permits or prohibites device having a power supply input without the impact of input signal, which enables the internal circuit part works at low voltage.Reason 2: Wide Applicationsize: 43 x 43 x 27mmMaterial: PCBcolour: redPackage Contents:2 x L298N Motor Drive Controller Board ModuleOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm. Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. Sold by-Minnanxin
