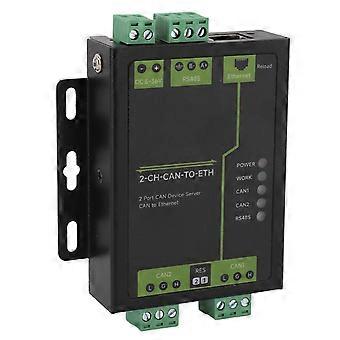

Features 1、Hardware Guard: New hardware guard, CAN, serial port, network port, power supply have high level guard, suitable for more demanding industrial environments; new ARM kernel, industrial grade operating temperature range, carefully optimized TCP IP protocol, stable and reliable. 2、Easy to Use: 10 100Mbps network port, support for Auto MDI MDIX, cross direct line can be used; support CAN ID filtering function, a variety of filtering methods to use more secure and convenient; a port can support two SOCKET connections. 3、Simple Setup: CAN baud rate support 10K~1Mbps; support BASIC and LOOPBACK working mode; support static IP address or DHCP to get IP address automatically, and can query devices in the network through UDP broadcast protocol; Reload button, one key to restore the default settings, not afraid of wrong settings; RJ45 with Link Data indicator. RJ45 with Link Data indicator, external isolation transformer on the network port, 1.5KV electromagnetic isolation. 4、Upgrade Firmware: The world's only Media Access Control Address (starting with D8 B0 4C); support firmware upgrade through the network, firmware update is more convenient; support for web port (default 80) change; support for keepalive mechanism, you can quickly detect the dead connection and other anomalies and quickly reconnect. 5、Account Security: Support account and password, which can be used for web login and network settings, more secure; power supply interface supports 5.08‑2 terminal block and wide voltage supply (5~36V); CAN relay function; CAN to 485 function. Specification Item Type: 2 Port CAN to Ethernet Server Material: Aluminium Alloy Device Interface: CAN RS485 ETH Hardware: Working Current: 26mA (avg) 36V 56mA (avg) 12V 124mA (avg) 5V Power Guard: Power Surge Level 3, Group Pulse Level 3 Network Port Specification: RJ45, 10/100Mbps, Cross Direct Connection Adaptive Network Port Guard: 1.5KV Electromagnetic Isolation Serial Port Support: RS485 Serial Baud Rate: 600bps~115.2Kbps CAN Baud Rate: 10Kbps~1Mbps CAN Operation Mode: Basic, Loopback CAN Guard: Power Isolation, Signal Isolation Software: Network Protocol: IPV4, TCP UDP IP Acquisition: Atatic IP, DHCP User Configuration: Web Configuration, Serial, Network AT Commands TCP Server Connection: Supports up to 4 Channel TCP Cconnections CAN Receive Capability: 8000 frames/sec (Per Channel) CAN Transmit Capability: 8000 frames/sec (Per Channel) 120Ω Resistor: Built in and Configurable Network Buffer: Transmit: 16Kbyte (Total) Receive: 16Kbyte (Total) CAN Cache: Transmit: 200 Full Packets (Per Channel) Receive: 200 Full Packets (Each Way) Serial Cache: Transmit: 2Kbyte; Receive: 2Kbyte; Flow Control: None Heartbeat Packets, Registration Packets: Supports Customized Heartbeat Packets (CAN Packets Compliant with Pass Through Protocol) for the Network Interface Support Customized, Media Access Control Address, Pass Through Cloud Registration Package Average Transmission Delay: <20ms Supporting Software: Setup Software, VCOM (Does Not Support Auto Search) Others: Operating Temperature: -40~85℃ (Industrial Grade) Storage Temperature: -40~105°C Operating Humidity: 5~95%RH (No Condensation) Storage Humidity: 5~95%RH (No Condensation) Package List 1 x Module 1 x Power Adapter 1 x Screwdriver
